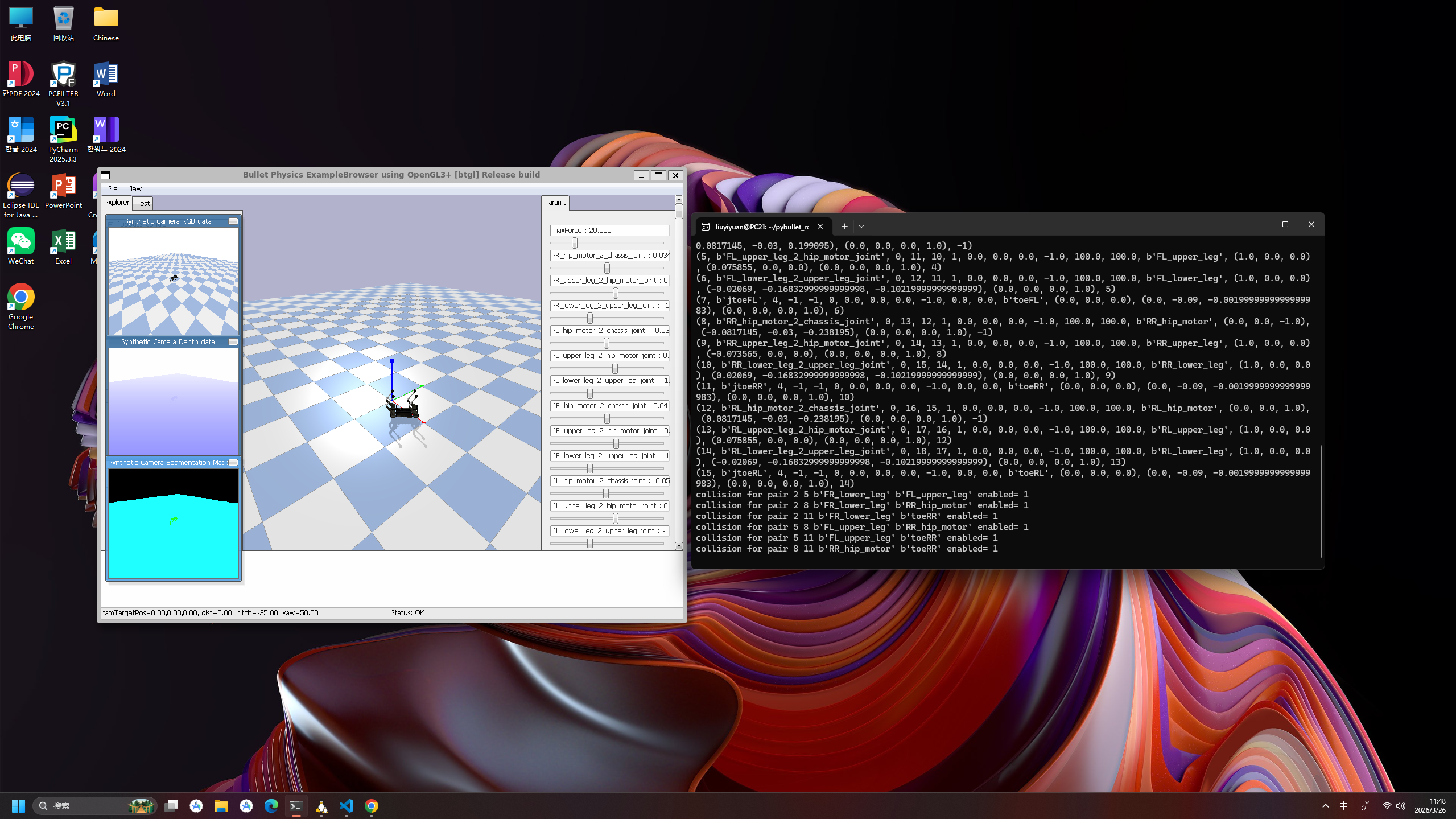

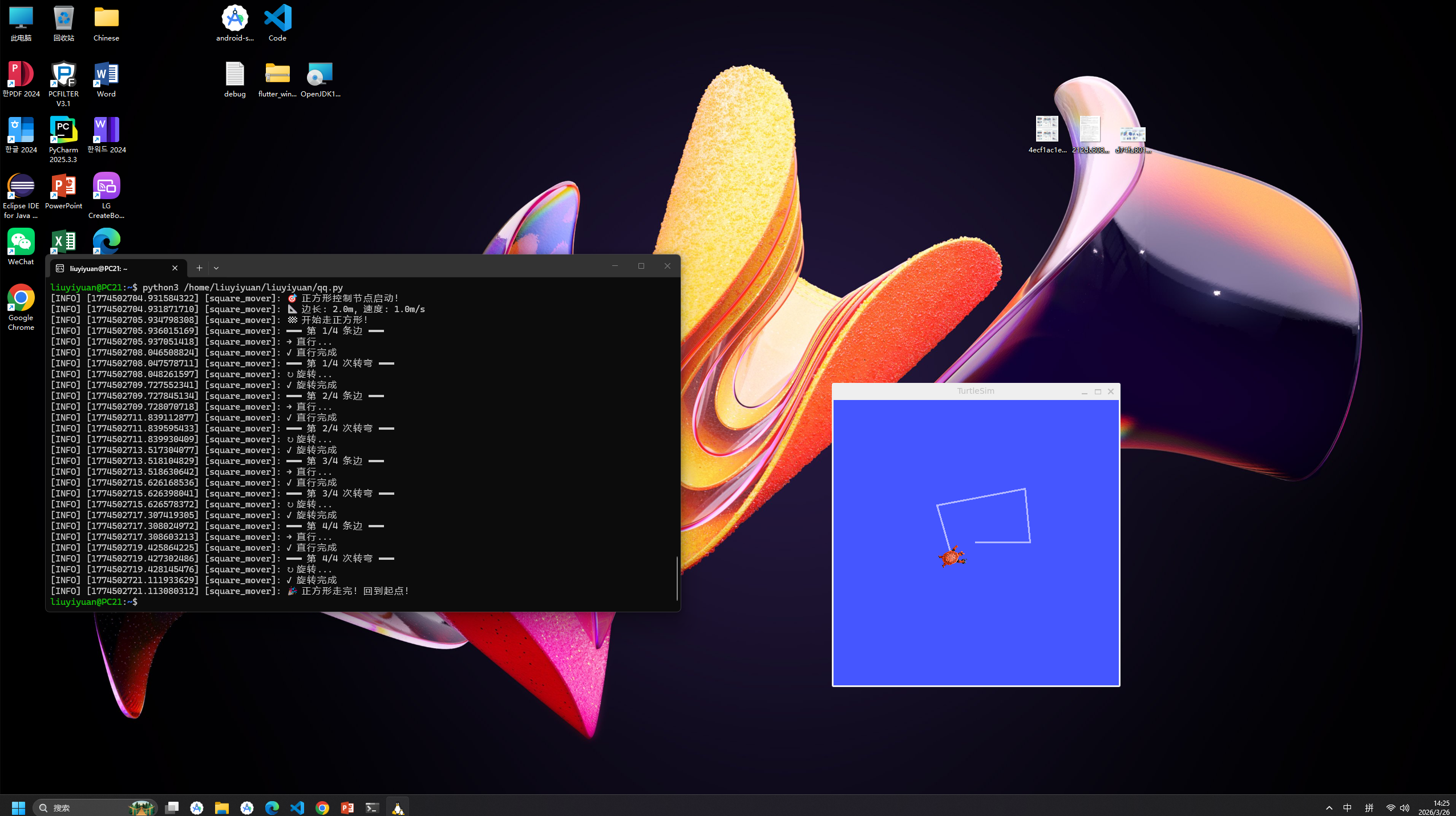

这周做了让小乌龟能稳稳地跑出正方形了。这周还尝试加载了机器狗模型，并把机械狗成功放倒。最后，把这些代码、截图都传到了 GitHub 上。 ```#!/usr/bin/env python3 “”” 让小乌龟走正方形的控制脚本 “””

import rclpy from rclpy.node import Node from geometry_msgs.msg import Twist import time

class SquareMover(Node): “"”走正方形的控制节点”””

def __init__(self):
    super().__init__('square_mover')

    # 创建发布者
    self.cmd_vel_pub = self.create_publisher(
        Twist,
        '/turtle1/cmd_vel',
        10
    )

    # ============ 参数设置 ============
    self.SPEED = 1.0              # 线速度 m/s
    self.TURN_SPEED = 1.0          # 角速度 rad/s
    self.SIDE_LENGTH = 2.0         # 边长 m

    # 计算运动时间
    self.MOVE_TIME = self.SIDE_LENGTH / self.SPEED
    self.TURN_TIME = 1.5708 / self.TURN_SPEED  # 90° = π/2

    self.get_logger().info('🎯 正方形控制节点启动！')
    self.get_logger().info(f'📐 边长: {self.SIDE_LENGTH}m, 速度: {self.SPEED}m/s')

def move_straight(self, duration):
    """直行指定时间"""
    self.get_logger().info('→ 直行...')

    msg = Twist()
    msg.linear.x = float(self.SPEED)
    msg.angular.z = 0.0

    # 记录开始时间
    start_time = self.get_clock().now()

    # 持续发布命令
    while (self.get_clock().now() - start_time).nanoseconds < duration * 1e9:
        self.cmd_vel_pub.publish(msg)
        time.sleep(0.01)

    # 停止
    self.stop()
    self.get_logger().info('✓ 直行完成')

def turn(self, duration):
    """旋转指定时间"""
    self.get_logger().info('↻ 旋转...')

    msg = Twist()
    msg.linear.x = 0.0
    msg.angular.z = float(self.TURN_SPEED)

    start_time = self.get_clock().now()

    while (self.get_clock().now() - start_time).nanoseconds < duration * 1e9:
        self.cmd_vel_pub.publish(msg)
        time.sleep(0.01)

    self.stop()
    self.get_logger().info('✓ 旋转完成')

def stop(self):
    """停止运动"""
    msg = Twist()
    msg.linear.x = 0.0
    msg.angular.z = 0.0
    self.cmd_vel_pub.publish(msg)
    time.sleep(0.1)

def move_square(self):
    """执行走正方形"""
    self.get_logger().info('🏁 开始走正方形！')

    for i in range(4):
        self.get_logger().info(f'━━━ 第 {i+1}/4 条边 ━━━')
        self.move_straight(self.MOVE_TIME)

        self.get_logger().info(f'━━━ 第 {i+1}/4 次转弯 ━━━')
        self.turn(self.TURN_TIME)

    self.get_logger().info('🎉 正方形走完！回到起点！')

def main(args=None): rclpy.init(args=args) node = SquareMover()

# 给系统一点准备时间
time.sleep(1)

# 执行走正方形
node.move_square()

node.destroy_node()
rclpy.shutdown()

if name == ‘main’: main()
